Multi-level shuttle systems with a combined pushcart principle: How decoupled shuttle systems accelerate e-commerce

2D, 3D, or multi-level shuttle? Which storage system truly reduces costs?

Logistics of the future: Why multi-level shuttles are replacing the classic storage and retrieval machine

The booming e-commerce sector, rising land prices, and ever-shorter delivery times are putting immense pressure on intralogistics. Companies across all industries face the enormous challenge of making their storage capacities denser, more flexible, and, above all, significantly faster – without losing sight of energy and investment costs. For a long time, the classic storage and retrieval machine was considered the gold standard, but in modern high-performance warehouses, it is increasingly reaching its physical and economic limits.

While the market is currently celebrating highly complex, autonomous 2D and 3D shuttle concepts as universal saviors, a more nuanced economic analysis often paints a completely different picture: Frequently, it is the clever design principle of multi-level shuttle systems with combined vertical transport that proves to be the far more economical choice in practice. By consistently decoupling horizontal and vertical movements, these systems not only achieve outstanding throughput rates and extremely high space efficiency, but also demonstrate their superiority under extreme conditions – for example, in deep-freeze warehouses at temperatures as low as minus 30 degrees Celsius. This detailed analysis sheds light on why the expensive hype surrounding maximum autonomy at the individual vehicle level is not always the best solution and in which scenarios specialized multi-level shuttles fully demonstrate their strengths as a reliable backbone of the supply chain.

Related to this:

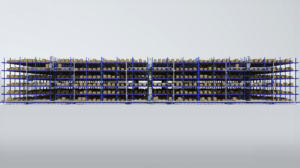

• LTW Shuttle System Video

Why conventional storage solutions are reaching their economic limits – and which technology is changing the game

Rising throughput demands from e-commerce, increasing space constraints in metropolitan areas, and the relentless pressure to reduce operating costs are forcing companies to radically rethink their warehouse infrastructure. In this context, one technology category has proven particularly effective: the multi-level shuttle system with a combined pusher carriage. The Austrian intralogistics specialist LTW has developed a system in this area based on an innovative architectural principle – several compact storage and retrieval machines arranged one above the other in a single aisle, connected by a highly dynamic vertical conveyor. This principle combines the strengths of classic storage and retrieval machines with the scalability of shuttle solutions, offering economic advantages that positively impact virtually every key performance indicator in warehouse logistics.

The global market for automated warehouse shuttle systems is experiencing rapid growth. Industry analyses forecast a volume of approximately US$12 billion by 2032, representing an average annual growth rate of around 12.8 percent. Europe holds the second-largest market share after North America, while the Asia-Pacific region is the most dynamic growth zone. This trend is no coincidence, but rather reflects a structural shift: companies are recognizing that investing in highly automated shuttle systems is no longer simply a technological upgrade, but a strategic necessity to remain competitive in an increasingly volatile market environment.

The architectural principle behind the LTW system: horizontality as a guarantee of speed

The shuttle system developed by LTW is based on an elegant yet technically sophisticated concept. In a storage aisle, several compact storage and retrieval machines are positioned one above the other on separate rails. The individual vehicles move almost exclusively horizontally, i.e., sideways back and forth along the front of the racking. A dedicated vertical conveyor provides the vertical connection between the levels, transporting the units between the storage and retrieval machines and then retrieving them again.

The crucial importance of this division of movement axes becomes clear from the physics of warehouse technology. A conventional, aisle-bound storage and retrieval machine must operate both the horizontal and vertical axes. This means the machine must constantly switch between travel and lifting movements, or combine them in diagonal travel mode. As a result, the speed is always limited by the slower axis. This limitation is eliminated in the LTW system. Since each individual vehicle serves only one or a few levels and does not require its own lifting function, the full horizontal speed can be utilized continuously. The maximum speed is therefore no longer limited by mechanical compromises, but rather determined by the pure performance of the horizontal drive.

This principle, in its economic logic, is comparable to the division of labor in industrial production: By specializing individual components for their respective core functions, the overall performance of the system is significantly increased without increasing the complexity of the individual components. On the contrary, the more compact and lighter shuttle vehicles are mechanically simpler than a complete storage and retrieval machine with an integrated lifting mast, which directly translates into lower maintenance costs and higher availability.

Power density in the smallest space: The economic equation of storage compaction

In modern warehouse logistics, space is the most expensive resource. Especially in temperature-controlled environments, where every cubic meter of refrigerated or deep-freeze space incurs significant energy and construction costs, storage density becomes a key economic factor. This is where the multi-level shuttle system demonstrates its strengths particularly impressively.

The ability to operate multiple vehicles stacked on top of each other in a single aisle allows for consistent utilization of the available hall height. In contrast to a conventional storage and retrieval machine, which can reach heights of up to 45 meters but whose throughput is limited to a single vehicle per aisle, the shuttle concept enables a nearly linear scaling of performance with the number of levels used. In practice, this means that if an operator doubles the number of shuttle vehicles in an aisle, the throughput almost doubles as well, without requiring additional aisles or racking structures.

The economic implications of this scaling logic are considerable. In a typical deep-freeze warehouse, where construction costs per square meter are many times higher than in a conventional dry storage facility, reducing the required floor space while maintaining or even increasing throughput can translate into savings in the seven-figure range. Shuttle systems can reduce the space requirement by almost half compared to conventional solutions. This reduction in space not only impacts construction costs but also ongoing energy costs for cooling, lighting, and air conditioning. Every cubic meter of temperature-controlled storage space saved lowers operating costs over the entire lifespan of the facility.

The LTW system can be used without problems at temperatures as low as minus 30 degrees Celsius. This deep-freeze capability is by no means a given. Many shuttle systems from other manufacturers are limited to a positive temperature range, typically between 2 and 45 degrees Celsius. The LTW system owes its ability to operate reliably even in extreme cold conditions to its origins in cable car technology, which places the highest demands on mechanical robustness and material resistance under harsh conditions. For the food industry, pharmaceutical logistics, and the chemical industry, where deep-freeze storage is a core business, this feature is a crucial differentiating factor.

System redundancy and availability: Why fail-safe operation becomes a question of economic viability

A frequently underestimated economic factor in warehouse technology is the availability of the entire system. A single failure of a conventional storage and retrieval machine blocks the entire aisle and thus all storage locations accessed by that machine. In a high-performance warehouse with several thousand storage locations per aisle, such a failure can lead to serious supply bottlenecks within just a few hours, especially if the affected aisle contains critical fast-moving items.

The multi-level shuttle system fundamentally mitigates this risk. Because several independent vehicles operate in an aisle, the failure of a single shuttle only leads to a partial reduction in performance, not a complete aisle outage. The remaining vehicles continue to serve the aisle, albeit with reduced throughput. The economic significance of this architectural advantage can hardly be overstated. Despite the larger number of moving parts, the availability of a shuttle system is higher than that of conventional storage and retrieval machines due to the multitude of parallel and independent movements.

A potential weak point of the system, however, is the vertical conveyor, which serves as the central connecting element. If this fails, the entire aisle is cut off from material flow. Intelligent system configurations mitigate this risk by installing redundant vertical conveyors or by connecting multiple aisles to shared conveyor systems, thus ensuring that alternative transport routes remain available. The probability of failure can also be further reduced by installing additional vertical conveyors. LTW utilizes a special belt technology that makes the vertical conveyor particularly robust and space-saving, and it can even withstand freezing temperatures without any problems.

The monetary value of this increased availability can be illustrated using a simple calculation model. Assume that a conventional storage and retrieval machine (SRM) downtime lasts an average of four hours, and the aisle handles 200 storage and retrieval operations per hour under normal operating conditions. Each missed operation incurs opportunity costs due to delayed order processing, downtime in subsequent processes, and potential penalties for missed delivery commitments. Even with conservative estimates, these costs quickly add up to five-figure sums per downtime event. In a shuttle system, where the same downtime results in a performance reduction of, say, 15 to 20 percent, the costs remain significantly lower. Over the system's typical lifespan of 15 to 20 years, this advantage accumulates to a substantial amount.

Energy efficiency as a hidden competitive advantage

In public discussions about warehouse technologies, key performance indicators such as throughput, storage capacity, and investment costs usually take center stage. Energy efficiency, on the other hand, is often considered a secondary factor. This view is economically short-sighted. In a high-performance warehouse operating around the clock, energy costs can represent a significant portion of the total operating costs over a ten-year period. Particularly against the backdrop of rising energy prices in Europe and increasing regulatory requirements regarding the carbon footprint of logistics operations, the energy efficiency of the warehouse technology used is gaining strategic importance.

In this respect, the multi-level shuttle system offers structural advantages over conventional storage and retrieval machines. The compact, lightweight shuttle vehicles require significantly less energy for their horizontal movement than a complete storage and retrieval machine, which, in addition to the horizontal drive, must accelerate and decelerate a heavy lifting mast with a load handling device. While the energy requirement for vertical transport via lift is roughly equivalent to the energy requirement of the lifting drive on a conventional storage and retrieval machine, considerably less energy is needed for horizontal transport in the shuttle warehouse. Overall, the energy balance of shuttle systems is significantly more favorable than that of conventional alternatives.

This efficiency advantage is easily understood from a physics perspective. The moving mass of a single shuttle vehicle is typically a fraction of the mass of a complete storage and retrieval machine. Since kinetic energy is proportional to mass, the energy required for acceleration and deceleration decreases accordingly. Although several vehicles operate simultaneously in a shuttle system, not all are in constant motion, and regenerative energy recovery is more efficient with lighter vehicles, the overall energy consumption remains lower than that of a comparable storage and retrieval machine system with the same performance.

LTW Intralogistics Solutions – Shuttle System - Image: LTW Intralogistics GmbH

LTW offers its customers not individual components, but integrated complete solutions. Consulting, planning, mechanical and electrotechnical components, control and automation technology, as well as software and service – everything is networked and precisely coordinated.

In-house production of key components is particularly advantageous. This allows for optimal control of quality, supply chains, and interfaces.

LTW stands for reliability, transparency, and collaborative partnership. Loyalty and honesty are firmly anchored in the company's philosophy – a handshake still means something here.

Related to this:

• LTW Solutions

Strategic comparison: MLS systems versus 2D and 3D shuttle technologies

The landscape of automated warehouse technology is becoming increasingly diverse. Alongside multi-level shuttle systems, which, like the LTW system, are based on stacked, aisle-bound vehicles, so-called 2D and 3D shuttle technologies have become established, pursuing a fundamentally different approach. Comparing these system architectures is not only technically, but above all economically, insightful.

Multi-level shuttle systems (MLS) are characterized by their shuttle vehicles having a limited lifting capacity, allowing them to serve multiple levels without needing to be repositioned. Several of these MLS systems are stacked vertically in an aisle. The result is a combination of high throughput and high availability. This concept underlies the LTW system and offers the advantage that the vehicles can operate autonomously and with high dynamics within their assigned area, while the vertical conveyor efficiently transfers goods between zones.

Multi-level shuttle solutions with multi-aisle functionality (MAL) extend this principle by allowing the shuttles to move between different aisles. This horizontal roaming is achieved via rail systems in the pre-zone, enabling the vehicles to move laterally. From an economic perspective, the multi-aisle function offers the advantage of more flexible load distribution: If an aisle is particularly busy, vehicles from less congested aisles can be redistributed. However, this flexibility significantly increases the complexity of the overall system and the associated control software. Furthermore, moving laterally between aisles takes time that is then lost to the actual storage and retrieval processes.

In contrast, 2D and 3D shuttle systems represent a radical departure from the aisle-bound concept. A 3D shuttle can not only move lengthwise and crosswise within the racking, but also change levels using integrated lifts. Mecalux, for example, offers an automated 3D pallet shuttle system in which multidirectional shuttles with electric motors autonomously store and retrieve pallets in three dimensions. The high speed and operational versatility of these vehicles increase warehouse throughput, and several racking vehicles can operate simultaneously in a single aisle.

The economic comparison of these system families can be based on several dimensions. In terms of pure investment costs, conventional storage and retrieval machines (SRMs) remain the most cost-effective option for simple requirement profiles and large installation heights. With a storage height of approximately 400 millimeters, any SRM with a rack height exceeding 14 meters surpasses the shuttle system in terms of pure storage capacity. The SRM system also comes out on top in a pure investment comparison, as it places lower demands on the steel structure and the vertical transport handled by the SRM enables various other savings.

However, as soon as the required throughput increases, the economic calculations shift in favor of shuttle systems. Captive shuttle warehouses, where the vehicles do not leave their assigned aisle and level, currently offer unparalleled throughput. However, this option also requires the highest investment and must be fully equipped from the outset, which limits subsequent capacity increases. Roaming systems, on the other hand, offer greater flexibility for phased expansion but require a more complex infrastructure.

3D shuttle systems position themselves as the ultimate flexibility solution. Since each vehicle can autonomously navigate the entire storage area, there's no need to be bound to fixed aisles or levels. Theoretically, this allows for optimal fleet utilization, as empty runs are minimized and orders can be distributed effectively across the entire warehouse. In practice, however, this flexibility comes at the cost of increased vehicle complexity. Multidirectional drives, integrated lifting mechanisms, and autonomous navigation systems make each 3D shuttle a comparatively expensive and maintenance-intensive piece of equipment. Furthermore, the maximum travel speeds are typically lower than those of specialized, unidirectional shuttle vehicles due to the need to change direction and levels.

Scalability as a key economic criterion

In an economy characterized by increasing volatility, the ability to gradually expand storage capacity and performance is becoming a critical success factor. Companies are reluctant to invest in oversized facilities that only reach full capacity after years. At the same time, they cannot afford to be unable to deliver during sudden spikes in demand.

Multi-level shuttle systems offer an attractive solution in this challenging environment. Their modular design allows for flexible scalability in terms of size and performance. In the simplest scenario, increased capacity can be achieved by adding more shuttle vehicles to existing aisles, provided the racking structure and vertical conveyor support the additional capacity. Alternatively, new aisles can be added, reusing the existing infrastructure for conveyor technology and warehouse management software.

This modularity has direct economic value, which is reflected in the discounted cash flow analysis of a warehouse investment. For example, if a company plans a system that is expected to reach full capacity in three years, a modular shuttle system allows it to spread the investment over this period. The initial investment covers only the current demand, and expansion occurs as needed. Compared to a stacker crane solution, where the entire unit must be installed from the outset, even if its full capacity is not required for years, the modular shuttle concept significantly reduces capital commitment in the initial phase and improves the internal rate of return on investment.

Cassioli's multi-level shuttle approach illustrates this principle: By stacking multiple shuttles, the warehouse can be flexibly configured, and the system's modularity allows for customized adaptation to customer needs, production capacities, and the type of product being handled. At the same time, the compact design and reduced weight contribute to a more dynamic system, ensuring greater productivity, high storage density, excellent energy efficiency, and low maintenance costs.

Deep-freeze storage as an application with maximum added value

The LTW system's ability to operate at temperatures as low as minus 30 degrees Celsius is not a marginal feature, but rather opens access to a market segment with above-average added value. Deep-freeze warehouses are among the most cost-intensive infrastructures in the logistics industry. Construction costs are significantly higher than those of conventional warehouses due to the required insulation, special floor slabs, high-performance refrigeration technology, and stricter fire safety requirements. Operating costs are also higher, as maintaining the temperature continuously requires considerable amounts of energy.

In this environment, every improvement in storage density acts as a lever for the overall cost structure. If a shuttle system, thanks to its higher storage density, can make a cold storage warehouse 30 percent more compact than a conventional solution, the operator not only saves 30 percent of the floor space, but also proportionally reduces insulation material, cooling capacity, and ongoing energy costs. Over the lifetime of the system, these savings add up to considerable sums.

In addition, there are ergonomic and labor law aspects to consider. Manually operated deep-freeze warehouses are subject to strict working time restrictions for staff. Employees are only permitted to work in the frozen area for limited periods and require regular warm-up breaks. Automated systems like the LTW shuttle are exempt from these restrictions and can operate around the clock with consistent performance. The resulting increase in productivity compared to manual or semi-automated operation is therefore even more pronounced in deep-freeze storage than in conventional temperature environments.

The food industry, particularly the frozen food and frozen ready meal sector, has experienced stable growth in Europe for years. Large retail chains and quick-commerce providers are massively expanding their frozen food supply chains, which will further drive demand for high-performance frozen storage technology. Suppliers like LTW, with their proven expertise and robust technology in this segment, are strategically well-positioned to capitalize on this trend.

The role of software as an economic multiplier

An often overlooked aspect of the economic analysis of shuttle systems is the importance of the control software. The hardware – shuttle vehicles, rails, vertical conveyors, racking system – forms the physical foundation of the system. However, the actual performance, measured in throughput, efficiency of order sequencing, and optimization of travel routes, is largely determined by the software.

In a multi-level shuttle system with dozens or hundreds of vehicles operating simultaneously, coordinating their movements is a highly complex optimization task. Each vehicle must know at all times which task it is to perform next, which route it must take, and how to avoid collisions with other vehicles in the same aisle. At the same time, the software must control the vertical conveyor in such a way that waiting times are minimized and the transfer points between horizontal and vertical transport are optimally timed.

LTW positions itself as a full-service provider and general contractor, combining stacker cranes, conveyor technology, and software to create a seamless material flow in high-bay warehouses. This integrated approach is economically advantageous because it eliminates the friction losses that typically occur when integrating components from different manufacturers. Interface problems between hardware and software from different vendors are a frequent cause of performance losses, delayed commissioning, and increased maintenance costs.

Modern warehouse management systems increasingly rely on artificial intelligence and machine learning to optimize vehicle control in real time. These technologies enable the recognition of order patterns, the anticipation of seasonal fluctuations, and the dynamic adjustment of item arrangement on the shelves to changing access profiles. For shuttle warehouse operators, this means that the system's performance is not only maintained over time but can be continuously improved through software updates and algorithm enhancements, without requiring any physical modifications to the system.

Investment calculation in the overall context: Total Cost of Ownership

Assessing the economic viability of a multi-level shuttle system requires a comprehensive total cost of ownership analysis that goes far beyond the initial purchase price. While conventional storage and retrieval machines may be cheaper in certain scenarios based solely on investment costs, this perspective is too narrow.

A complete economic analysis must consider the following cost categories: first, the acquisition costs, including planning, rack construction, vehicles, conveyor technology, and software; second, the building construction costs, which can vary considerably depending on the different storage densities of the systems; third, the energy costs over the entire lifespan, which tend to be lower for shuttle systems due to the lower energy requirements for horizontal transport; fourth, the maintenance and spare parts costs, which can be more advantageous for lighter and mechanically simpler shuttle vehicles; fifth, the costs of breakdowns and performance reductions, which are lower due to the higher redundancy of the shuttle system; and sixth, the costs of future expansions, which are lower due to the modular architecture of the shuttle system.

When all these factors are incorporated into a dynamic investment model, the overall balance for high-performance applications with medium to high throughput requirements generally favors the shuttle system. This is especially true in temperature-controlled environments, where the savings in building infrastructure more than offset the higher component costs of the shuttle system. The break-even analysis shifts further in favor of the shuttle system when rising energy prices and stricter sustainability requirements are factored into the forecast.

Market dynamics and structural drivers of growth

The market for automated warehouse shuttle systems is driven by several structural megatrends that promise sustained growth. E-commerce, which in 2022 alone generated $1.06 trillion in revenue in the US, representing 14.9 percent of total retail sales, is constantly increasing the demands on order fulfillment speed and delivery accuracy. These demands can no longer be met economically with manual or semi-automated warehouses beyond a certain scale.

At the same time, demographic change in Europe is exacerbating the shortage of skilled workers in warehouse logistics. It is becoming increasingly difficult to find qualified employees for repetitive, physically demanding tasks such as manual order picking. Automation is therefore not just a matter of efficiency, but increasingly an existential necessity for warehouse operators who want to maintain their order volumes. The increasing use of robotics and artificial intelligence is further driving the demand for automated warehouse shuttle systems.

Government initiatives to support Industry 4.0, particularly in the European Union and Asian economies, are creating additional investment incentives. Funding programs for digitalization and automation in logistics reduce effective investment costs and accelerate the amortization of new warehouse systems. For medium-sized companies that have previously been deterred by the high initial investments, these programs can be the deciding factor in their investment decisions.

The production and distribution center segment dominates the market and is expected to grow from US$2.53 billion in 2024 to US$4.46 billion by 2032. Pharmaceuticals and healthcare, retail and e-commerce, and industrial manufacturing represent other significant application segments, each with its own specific requirements for warehouse technology and further differentiating the demand for specialized shuttle solutions.

Competitive positioning and strategic implications for warehouse operators

For companies facing the decision of choosing a new automated warehouse system, the analysis paints a nuanced picture. There is no universally superior technology, but there are clear scenarios in which the multi-level shuttle system is the economically rational choice.

The system is the preferred solution when there are high throughput requirements exceeding 500 storage and retrieval operations per hour and aisle, storage density must be maximized due to limited floor space or high building costs, high system availability is business-critical, deep-freeze conditions are present, a phased expansion of the facility is planned, and energy costs represent a significant portion of the total costs due to 24/7 operation.

In scenarios with lower performance requirements, large installation heights exceeding 14 meters, and a homogeneous product range, a conventional storage and retrieval machine may be the more economical alternative. The decision should always be based on an individual simulation that considers the specific product range, access frequencies, planned growth rates, and local cost structures.

The strategic message is clear: the future of high-performance warehouse logistics belongs to shuttle systems. Multi-level shuttle systems combine the advantages of a storage and retrieval machine and a shuttle system and are ideally positioned in the medium to high performance range. Companies that invest in this technology today not only secure an operational advantage but also position themselves for a future in which speed, flexibility, and efficiency in the supply chain determine market success.
